Analysis Component¶
-
class
kicadtoNgspice.Analysis.
Analysis

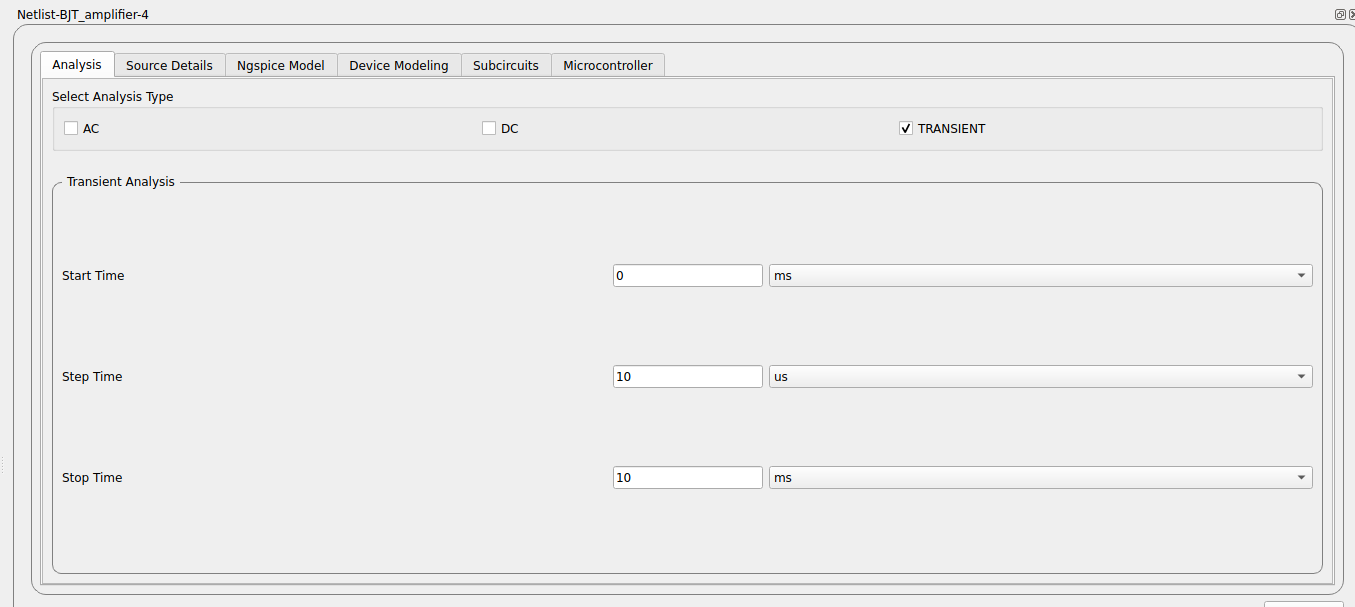

(clarg1)¶ - This class create Analysis Tab in KicadtoNgspice Window. 4 sections - - Select Analysis Type - AC Analysis - DC Analysis - Transient Analysis
- Set various track widget options here, for tracking purposes across different functions and modules - - AC_entry_var - AC_Parameter - DC_entry_var - DC_Parameter - TRAN_entry_var - TRAN_Parameter - set_Checkbox - AC_type - op_check
-
createACgroup
()¶ - Designing of AC group in analysis tab
- 3 radio buttons - Lin | Dec | Oct
- 3 input boxes, with top 2 combos
- If previous values exist then fill default values from previous value xml file
-
createAnalysisWidget
()¶ - Create the main anaylsis widget overwiew: - Checkbox for analysis type - Place, AC, DC and TRANSIENT analysis tab - self.acbox, self.dcbox, self.trbox…
- Check for analysis file, if any in projDir, extract data from it
- Else set the default checkbox to TRAN
- Accordingly set state for track widget options, as TRAN, AC …
-
createCheckBox
()¶ - Create the checkboxes for analysis type, under analysis tab
- checkbox > checkgrid > checkgroupbtn > checkAC | checkDC | checkTRAN
- Trigger enableBox on clicking
-
createDCgroup
()¶ - Create DC area under analysis tab
- Source 1 and 2, each having 4 input boxes as follows
- Source
- Start
- Increment
- Stop
- The last 3 have combo box pertaining to their unit as well
- Also in the end a checkbox, for operating system point analysis
-
createTRANgroup
()¶ - Creating transient group under analysis and creating it’s components
- Contains 3 inout and combo boxes for -
- Start time
- Step time
- Stop time
- Input boxes for values, combo boxes for unit
- Accordingly also event handlers for combo boxes, creates 3 functions
-
enableBox
()¶ - Activate analysis areas according to checkBox marked
- Add analysis data to track_obj from TrackWidget
-
increment_changecombo
(text)¶ Handle increment combo box, ie. units, as mV, V…
-
increment_changecombo2
(text)¶ Handle second increment combo box, ie. units, as mV, V…
-
set_ac_type
()¶ Sets track object for AC, according to the type of radio box selected.
-
setflag
()¶ - Handles the Operating point analysis checkbox
-
start_changecombo
(text)¶ Handle start combo box, ie. units, as mV, V…
-
start_changecombo2
(text)¶ Handle second start combo box, ie. units, as mV, V…
-
start_combo_change
(text)¶ Handle start combo box, ie. units, as second, ms
-
start_combovalue
(text)¶ - Handle start_fre_combo box event
- Check where it is Hz, MHz, etc.
- Accordingly set ac_parameter
-
step_combo_change
(text)¶ Handle step combo box, ie. units, as second, ms…
-
stop_changecombo
(text)¶ Handle stop combo box, ie. units, as mV, V…
-
stop_changecombo2
(text)¶ Handle second stop combo box, ie. units, as mV, V…
-
stop_combo_change
(text)¶ Handle stop combo box, ie. units, as second, ms…
-
stop_combovalue
(text)¶ - Handle stop_fre_combo box event
- Check where it is Hz, MHz, etc.
- Accordingly set ac_parameter
